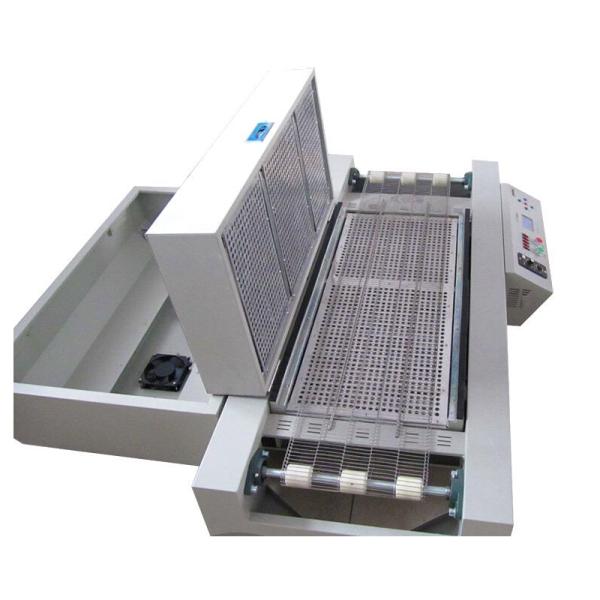

220V 6 Temperature Zone SMT Reflow Oven , Mini Reflow Oven Infrared Heating
| Model | T-961 |
| The heating zone quantity | upper3/down3 |
| The length of the heating | 730mm |
| The heating tupe | intelligent level sirocco and rapid infrared heating |
| The cooling zone quantity | 1 |
| Maximum width of PCB board | 230mm |
| The operation direction | left--right |
| Delivery options | Net transmission&chain transmission |
| The speed of conveyer belt | 0-290mm/min |
Features:
1. This machine selects the intelligent level sirocco and rapid infrared heating technology controlling, equipped with special design wind wheel, speed stability and uniform temperature, suit for uninterrupted soldering the LED and BGA components.
2. This machine is equipped with the crawler type and six temperature area heating systems, and each temperature area uses independent PID controlling and up down heating type, can make the inside temperature more accurate and well proportioned, just take about 7 minutes can let it heat up to the working temperature from the room temperature.
3. Intelligent temperature wave heating type, oversized capacity wave selection, have eight temperature waves can satisfy various welding technological requirements.
4. Use programmable technology, preset the temperature wave memory storage function, can complete the whole welding process automatically according to your presetting wave.
5. Adopt the thermocouple temperature measurement and add the compensation circuit, make the temperature measurement more accurate, the wave more perfect.
